Nowadays, there are so many products of refrigerator jazz board in the market and you are wondering to choose a best one. You have searched for refrigerator jazz board in many merchants, compared about products prices & reviews before deciding to buy them.
You are in RIGHT PLACE.
Here are some of best sellings refrigerator jazz board which we would like to recommend with high customer review ratings to guide you on quality & popularity of each items.

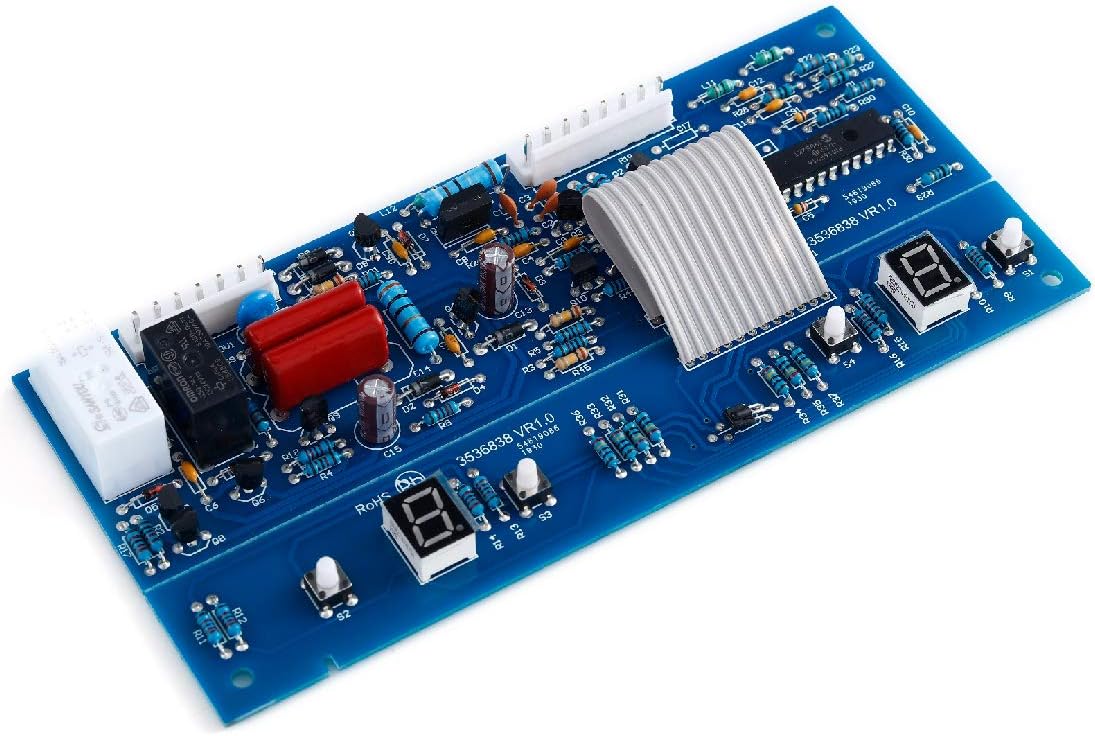

W10503278 Refrigerator Electronic Control Jazz Board for Whirlpool Maytag WPW10503278, W10165748, PS11755733, AP6022400, 12784415, 12868513
- This electronic control board part number WPW10503278 is for refrigerators
- Fits various Whirlpool Kenmore Maytag KitchenAid Jenn-Air Amana –
- Replaces following part # AP6022400 replaces 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, PS11755733, W10165748, W10503278
- Quality Electronic Board with 1 YEAR WARRANTY for peace of mind
Product description This part works with the following brands Whirlpool, Kenmore, Amana, Maytag, KitchenAid, Jenn-Air, Inglis. Ask our technician abour compatibility if you are not sure. Product details Part number: WPW10503278 Item weight: 6.4 ounces Product dimension: 5.7 x 4.8 x 4.4 inches
NEW W10503278 Refrigerator Control Jazz Board for Whirlpool Maytag WPW10503278, 12784415, 12868513, AP6022400, PS11755733, W10165748-1 YEAR WARRANTY
- This electronic control board part number WPW10503278 is for refrigerators
- Fits various Whirlpool Kenmore Maytag KitchenAid Jenn-Air Amana –
- Replaces following part # AP6022400 replaces 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496
- Quality Electronic Board with 1 YEAR WARRANTY for peace of mind
- Contact us if you are not sure if this is part you need
Product description This part works with the following brands Whirlpool, Kenmore, Amana, Maytag, KitchenAid, Jenn-Air, Inglis. Replaces following part # AP6022400 replaces 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, PS11755733, W10165748, W10503278.Ask our technician abour compatibility if you are not sure. Product details Part number: WPW10503278 Item weight: 6.4 ounces Product dimension: 5.7 x 4.8 x 4.4 inches
NOTE:THE COLOR OF THIS Refrigerator Control Jazz Board MAY BE “BLUE” OR “GREEN”.
W10503278 Refrigerator Control Jazz Board Replacement for Maytag MBF2256KEQ Refrigerator – Compatible with WPW10503278 Control Board
- UpStart Components Replacement W10503278 Refrigerator Control Jazz Board for Maytag MBF2256KEQ Refrigerator
- Ultra durable, high quality material resists wear and tear over time. Easy at-home installation.
- An affordable way to extend the life of your machine.
- Please make sure to check your original part to confirm that you are buying the correct product.
- Compatible WPW10503278 Control Board for Part Number WPW10503278, AP6022400, W10503278, 12784415, 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, PS11755733, W10165748
UpStart Components Replacement W10503278 Refrigerator Control Jazz Board for Maytag MBF2256KEQ Refrigerator
Please note: This is an UpStart Components Brand replacement part, NOT an OEM product. All mentions of brand names or model descriptions are made strictly to illustrate compatibility. All brand names and logos are registered trademarks of their respective owners. This product is not affiliated with any brands and is not covered under any warranties offered by the original manufacturers. Any warranties for this product are offered solely by UpStart Components.

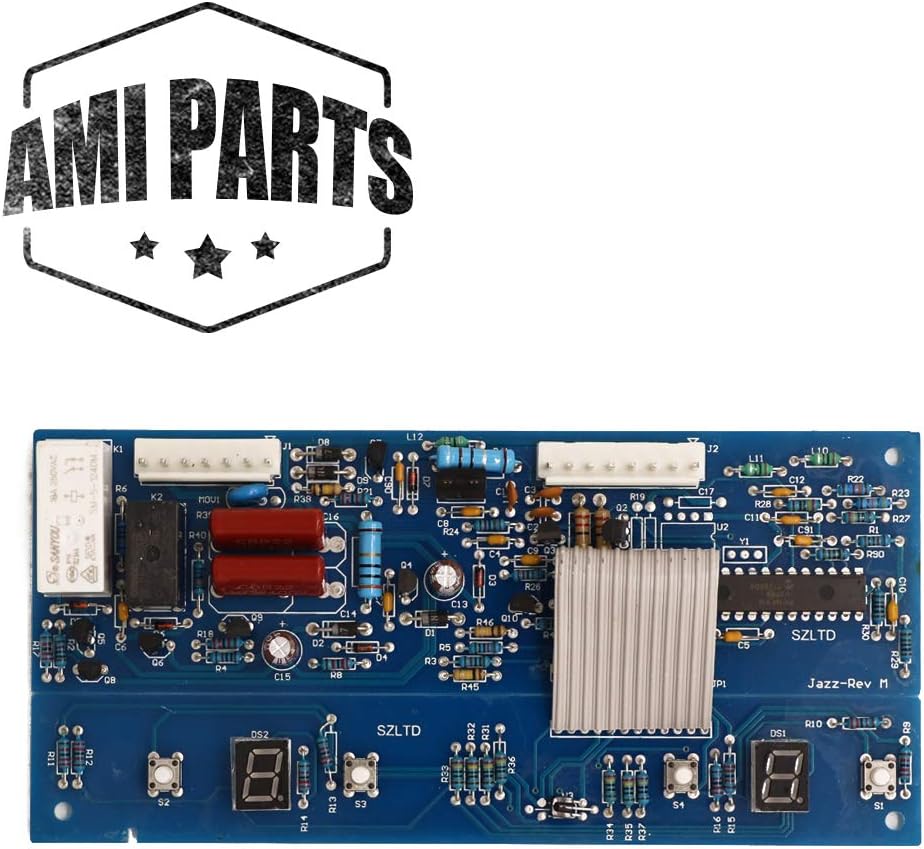

W10503278 Control Jazz Board Replacement Part by AMI, Exact Fit For Whirlpool Maytag Refrigerators,To be able to replace WPW10503278 AP6022400 12784415 12868513
- PARTS NUMBER：W10503278 Refrigerator Control Jazz Board
- Replaces Part:12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, W10165748.Compatible Brands:Whirlpool, Maytag, Amana, Kenmore, KitchenAid, Jenn-Air, Inglis.
- Superiority: It is easy to install, saves time and effort, and can save you a large amount of maintenance costs.
- QUALITY GUARANTEED : The replacement part is made from durable high quality material and well-tested by the manufacturer.
- PROMISE:If you’re not completely satisfied, you can ask for a replacement or refund.
Whirlpool 12784415 Refrigerator Electronic Control Board
Product Description
This is a genuine replacement part. The model number and name for the following item is: Whirlpool 12784415 Refrigerator Electronic Control Board.
From the Manufacturer
This is a genuine replacement part. The model number and name for the following item is: Whirlpool 12784415 Refrigerator Electronic Control Board

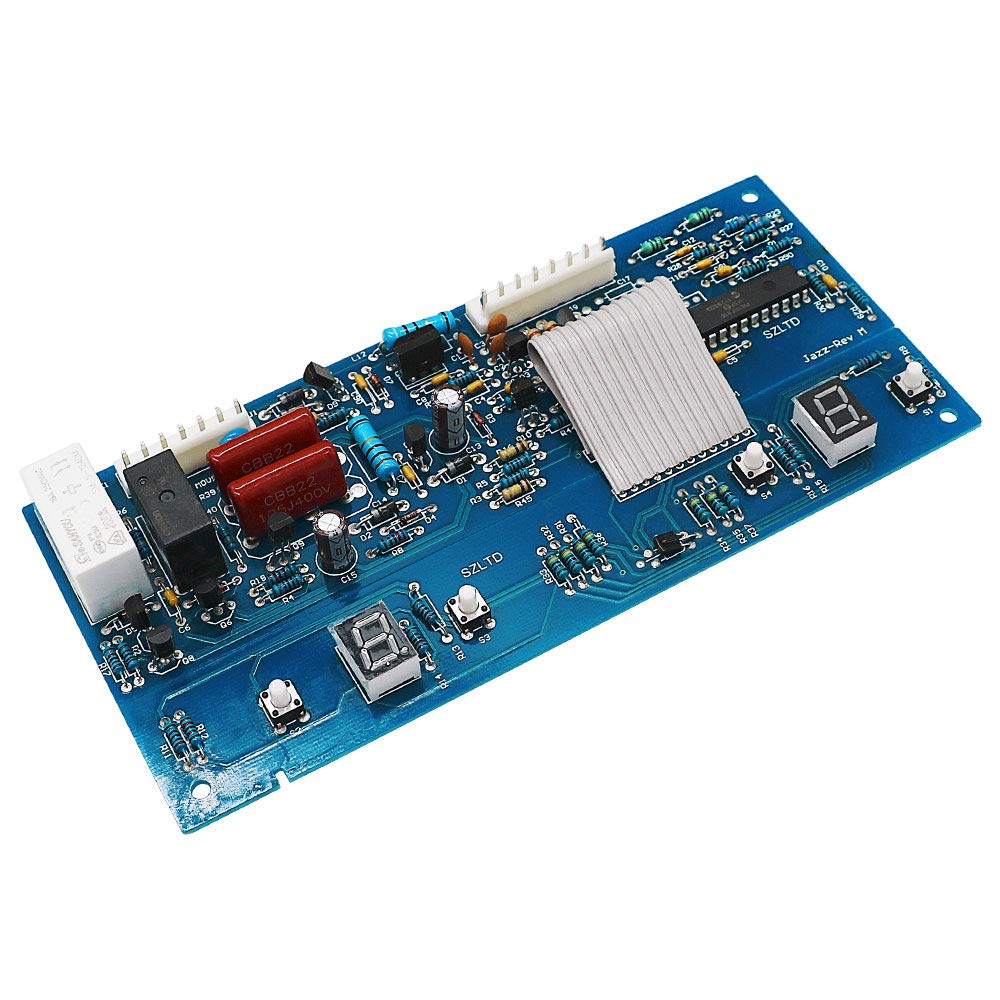

W10503278 Refrigerator Control Jazz Board for Whirlpool Maytag Refrigerator
- ➤ This electronic control board (part number WPW10503278 ) is for refrigerators
- ➤ This Part Works Compatible With The Following Brands: Maytag, Amana, Whirlpool, Kenmore, Kitchenaid, Jenn-Air, Inglis.
- ➤ Part Number: WPW10503278 replaces: 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, W10165748, W10503278, 2684578, AP6022400, PS11755733.
- ➤ Please Note: Part number is W10503278. Before make an order, please,Please be sure that the part fits for your appliance. Thank you！
- ➤ The Electronic Control Board Is Used In Rrefrigerators To Monitor And Manage The Temperature Settings, Such As Cooling Or Defrosting Times. If Your Fridge Or Freezer Is Too Warm, Too Cold, Is Not Defrosting, Will Not Start, And/Or Runs Too Long Then Replacing The Control Board Could Solve Your Appliance Problem. The Tools Needed For This Installation Project Is A Small Flat Blade Screwdriver. Note : The Board Will Need To Be Programmed After Installation. Remember To Unplug Refrigerator
Description ：
Package include:
1 x Fridge Control Board
1 x Instruction Manual
This Part Fixes The Following Symptoms:
- Fridge too warm.
- Freezer not defrosting.
- Will Not Start.
- Freezer section too warm.
- Freezer too cold.
- Fridge runs too long.
- Fridge too cold.
Programming Procedure :
The replacement control board is not programmed The Refrigerator will not operate without a code selected. It is important to program the control board with the correct code. Product must be powered up to program. If no code has been programmed the display will display 00 or flashing 00.
Note: The program code for this refrigerator is located on the serial plate on this unit after the word Code.
1. Open the fresh food door and hold the fresh food door light switch closed while pushing the freezer temperature down key pad 3 times consecutively.
2. Release the Fresh Food door light switch.
3. The control will display PE to confirm entry into the programming mode.
4. Entry is confirmed by pressing the Freezer Down key once more.
5. The control will display no Program Code.
6. To set the desired Program Code number, press the Freezer and Refrigerator UP keys. The corresponding digit will be advanced with each key press.
7. Once the desired Program Code is displayed, press the Freezer DOWN Key until the Program Code begins flashing indicating it has been saved.
Note: If you attempt to enter an invalid Program Code the control will not save the code, but will flash Program Code 00, (The unit will NOT run with a Program Code of 00).
8. Once the Program Code has been saved the Programming Mode is exited by closing the Refrigerator door(s).
Note:If you to enter a wrong Program Code the control can be reprogrammed by restarting the procedure from the beginning.
Appliancemate W10503278 Refrigerator Control Jazz Board Fit For Whirlpool Replaces 12784415 12002339
- PART NUMBER: W10503278. Electronic control board part number is for refrigerators
- Product dimension: 5.7 x 4.8 x 4.4 inches Item weight: 6.4 ounces Kit includes:Control Board x 1,Instruction Sheet x 1
- This control board controls most of the main functions on the refrigerator. It takes the place of a defrost timer and controls the automatic defrost cycle. It also controls the compressor, refrigerator & freezer temperatures, and the evaporator and condenser fan motors.
- You can send us refrigerator models number, we can help you to confirm if it can work or not.
- If you doubt the correctness of your diagnosis, you can contact us to find out from our technicians what you need.
Controls the cooling and defrosting of the Refrigerator
Works with the following models: Whirlpool GX5SHTXVQ00, Whirlpool GX2FHDXVQ07, Whirlpool GX2FHDXVT03, Whirlpool GX2FHDXVY010, etc.
Super Exquisite and Durable Jazz Control Board
Possible Repair Solution For:
Fridge section is too warm, fridge is too cold, freezer section is too warm, freezer section is too cold, will not start, frost buildup, leaking water.
Wear work gloves to protect your hands
How to install the W10503278 Control Board
Step1:First,unplug the refrigerator before working on it.Then remove the light cover by sliding it towards the back of the refrigerator.
Step2:Next depress the two tabs through the two slots on the back side of the light housing with a flat head screw driver. This will allow the control board housing to flip down. Then remove the two wire connectors to the control board.
Step3:depress the two tabs that lock in the two separate sections of the control board. Remove the old control board, and re-install the new control board.
Step4:The new control board comes as one piece, and you will have to snap the board at the break line to separate the new control board into two pieces before installing. Once this is done, you can re-install everything in the reverse order.
Step5:With the new control panel installed, you will need to follow these instructions to program the control board to work with your refrigerator.
This is a new GENUINE Whirlpool replacement part.
W10503278 WPW10503278 Refrigerator Control Jazz Board for Whirlpool Maytag Kenmore WPW10503278, W10165748, PS11755733, AP6022400, 12784415, 12868513
- This electronic control board part number WPW10503278 is for refrigerators
- COMPARABLE BRAND:Whirlpool Kenmore Maytag KitchenAid Jenn-Air Amana
- PREMIUM QUALITY – Quality Electronic Board with 1 YEAR WARRANTY for peace of mind
- 【Functions】: W10503278 control board is found on some Whirlpool built refrigerators with the freezer on the bottom. It can be found in Admiral, Amana, Jenn Air, Kenmore, Kitchen Aid, Maytag, and Whirlpool brand refrigerators. This control board controls most of the main functions on the refrigerator. It takes the place of a defrost timer and controls the automatic defrost cycle.
- 【Replaces These Parts】: 12784415, 12002339, 12002339, 12002445, 12002445, 12002449, 12002449, 12002508, 12002508, 12002509, 12002509, 12002567, 2684578, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, AP6022400, PS11755733, EAP11755733, WPW10503278, PD00004512.
W10503278 Refrigerator Control Jazz Board Replacement for Kenmore/Sears 596.75509400 Refrigerator – Compatible with WPW10503278 Control Board
- UpStart Components Replacement W10503278 Refrigerator Control Jazz Board for Kenmore / Sears 596.75509400 Refrigerator
- Ultra durable, high quality material resists wear and tear over time. Easy at-home installation.
- An affordable way to extend the life of your machine.
- Please make sure to check your original part to confirm that you are buying the correct product.
- Compatible WPW10503278 Control Board for Part Number WPW10503278, AP6022400, W10503278, 12784415, 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496, 67004907, 67005043, 67005280, 67005281, 67006034, 67006209, 67006214, 67006216, 67006226, 67006712, 67006740, 8208187, PS11755733, W10165748
UpStart Components Replacement W10503278 Refrigerator Control Jazz Board for Kenmore / Sears 596.75509400 Refrigerator
Please note: This is an UpStart Components Brand replacement part, NOT an OEM product. All mentions of brand names or model descriptions are made strictly to illustrate compatibility. All brand names and logos are registered trademarks of their respective owners. This product is not affiliated with any brands and is not covered under any warranties offered by the original manufacturers. Any warranties for this product are offered solely by UpStart Components.
Conclusion
By our suggestions above, we hope that you can found refrigerator jazz board for you.Please don’t forget to share your experience by comment in this post. Thank you!
